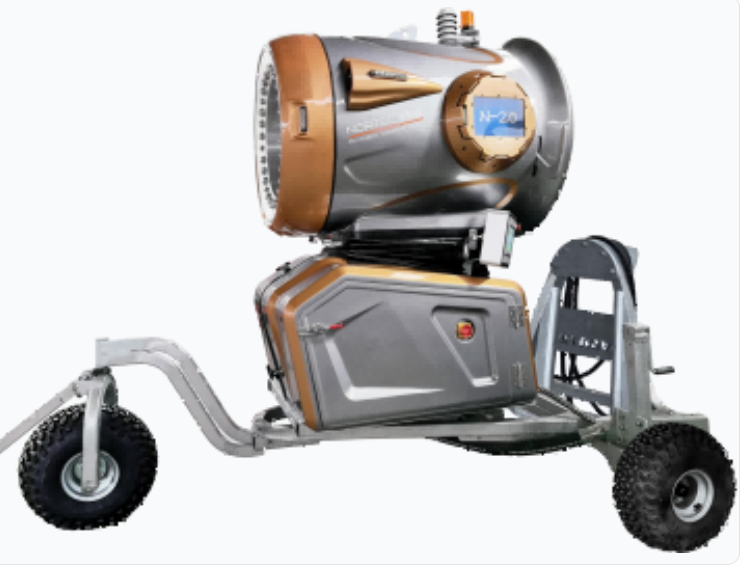

Snow-making machine







Product Introduction: A cost-effective snow-making machine for ski resorts, featuring voice control, fast snow production, large snow-making capacity, long range, fine snow quality and wide coverage area. The design concept is leading, adopting advanced super atomization technology, integrating snow quality with superior resource utilization and high availability. The water distribution system is completed inside the machine head, saving space. The entire machine's water supply system only uses one high-pressure water pipe, which is simple and efficient. The newly designed N-2.0 nozzle valve technology enables independent operation of individual units, which is more reliable. The mixing effect of water and compressed gas in the proportion of nuclear equipment can efficiently make snow at the critical temperature. The operating system features fully automatic sensing and voice control, making it a top-quality model in the industry at present.

Technical specifications: length, width and height: 3300. 2500. 2600mm

Weight: 1100kg

Fan motor power: 18.5kw

Compressor power: 4kw

Heating device power: 8kw

Other power: 0.5kw

Total power: 31kw

Snow-making environment temperature: -30℃ to 0℃

Snow-making environment humidity: less than 60%

Water supply temperature: 1℃ - 5℃

Number of leaves :12

Fan speed :2900r/min

Wind pressure :1120pa

Air volume: 35.330 m³/h

Working water pressure :15-40bar

Water flow rate :40-840L/min

Snow-making capacity :30-100 cubic meters per hour

Range :20-70 meters

Water pipe connector :DN50

Power supply voltage :380V

Power supply frequency :50Hz

Power connector :125A

Nozzle position :16 positions

Total number of nozzles :32

Nuclear device nozzles :8

Water nozzles :24

Adjustment method: Stepless speed change, 16 gears, can be adjusted manually or automatically
