Children's water park small horn slide

[ time:2025-12-19 01:21:38 ] source:http://en.klshuihuati.com read count:91
Children's water park small horn slide
  • Details
  • Contact Information

Water Park Equipment - Small Horn Slide (Sliding method: Raft sliding)

水上乐园小喇叭滑梯

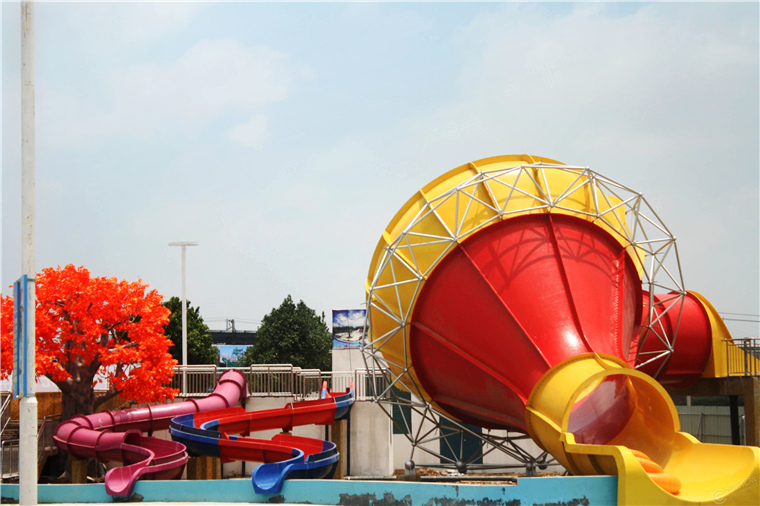

The small horn slide in the water park is a specially designed children's amusement equipment for children or family tourists. Tourists sit on a children's round raft, hold onto the handrails on both sides, and slide down the slide smoothly under the lubrication of water, using their own weight. After passing a certain distance, they enter an inclined cone, as if being sucked into the eye of a tornado. The raft moves up and down in a spiral pattern along the inner wall of the cone. At the end of the cone, it enters the buffer section. Under the effect of the water flow in the buffer section, its speed gradually decreases, and then it enters the drop pool, completing some thrilling and exciting adventures.
水上乐园小喇叭滑梯

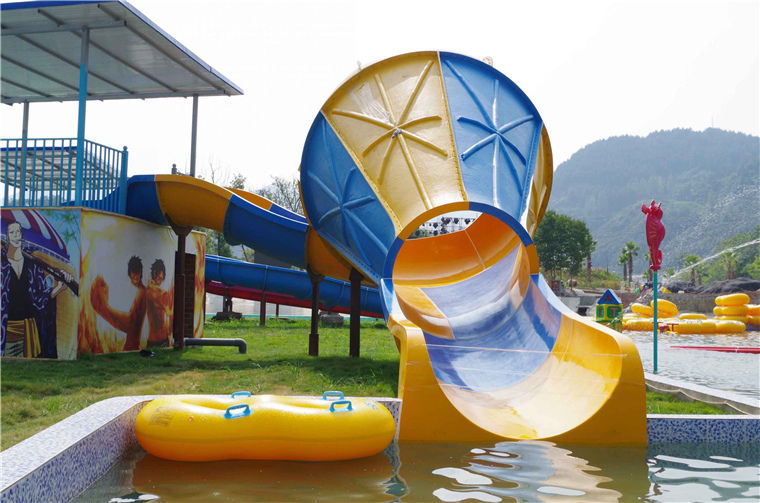

The Water park small horn is a mini version of the big horn slide. It is specially designed as a "small horn" that is completely suitable for children to play with. It is a brand-new product developed in response to the current situation in the market where there is a lack of parent-child interactive water slides. The floating ring is specially designed for two people with two seats, making it convenient for parents to accompany their children to play together and enjoy the happiness of family life. The small horn slide has the advantages of strong fun, high safety performance, bright colors, stable operation and easy management. It is an exciting and enjoyable series of parent-child slides. This is a paradise of joy for parents and children, with wonderful memories.
小喇叭滑梯

Reference indicators for the family small horn slide

Slide platform height: 1.98 meters.
Speaker diameter: 3.5 meters
Slide diameter: 1.4 meters
The diameter of the acceleration section of the slide is 1.4 meters.
Projection floor area: 20*11m.
Number of tourists per group: 2 people per group.
Rated passenger capacity: 260 people per hour.
Execution standard: GB18168-2008 General Technical Conditions for Water Amusement Facilities

Note: The small horn slide in the water park can be combined with other slides to share one platform.
