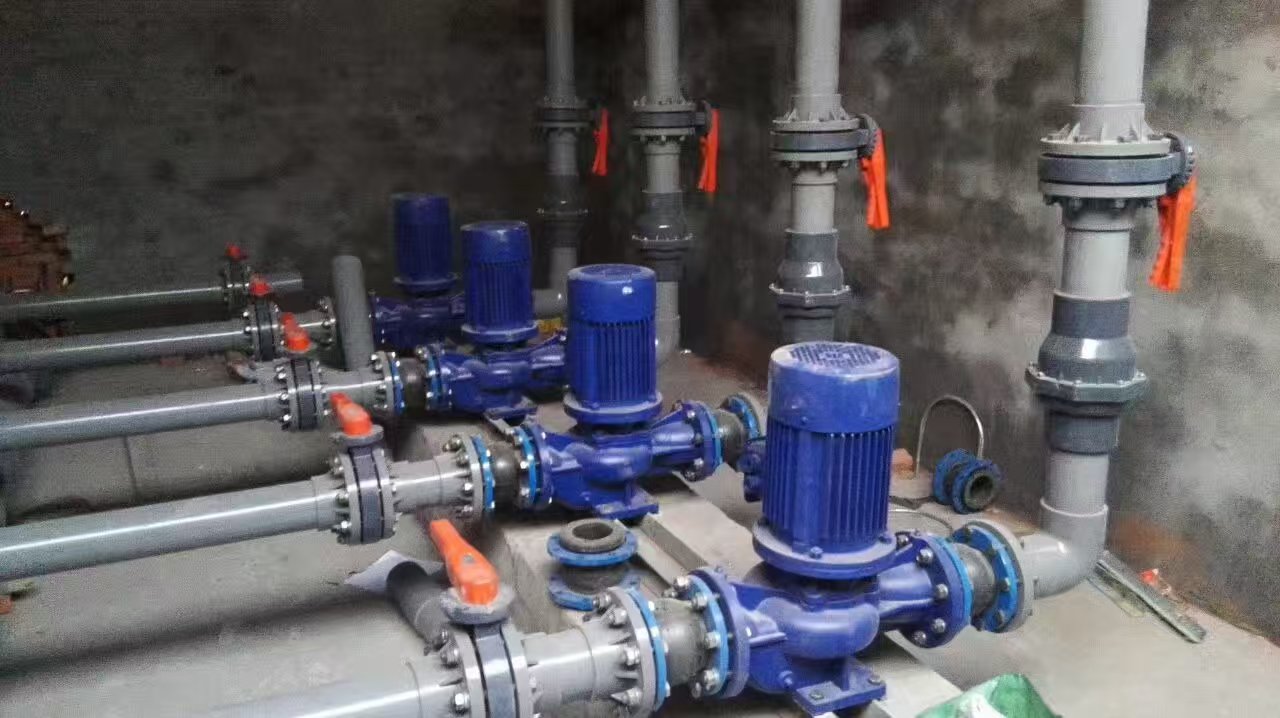

Drift river drive pump

　　The application scope of the landscape drift submersible pump

　　It can be used for urban landscapes, hotel and scenic area fountains, as well as for rainwater recycling and utilization systems, mine drainage and emergency rescue, urban water supply, seawater lifting, Marine platform fire protection, hot water well water lifting, and for lifting underground water sources in hot spring bathing enterprises and institutions.

　　The allowable medium range of the landscape drift submersible pump

　　1: Impurity-free clear water, chilled water/cooling water, rainwater, underground water gushing from coal mines, iron mines, metal mines, etc., drinking water, mineral water, etc.

　　The allowable working water temperature range is +5 to +25℃, and the R-type high-temperature water pump can withstand a temperature of 180℃

　　The content of solid impurities (by mass ratio) shall not exceed 0.01%

　　4: PH value (acidity and alkalinity)6.5-8.5(except for stainless steel or tin bronze materials

　　The content of hydrogen sulfide shall not exceed 1.5mg/L

　　The content of chloride ions shall not exceed 400mg/L

　　7: The unit must be fully submerged in water to operate.

　　Motor parameters of landscape drift submersible pump

　　The submersible motor is lubricated with clean water. Before use, the motor cavity must be filled with clean water. (Note: It must be filled up; otherwise, the service life of the motor will be reduced.) If water is forgotten to be added, the motor will burn out quickly.

　　Motor protection class: IPX8 Insulation class: F class

　　Power supply

　　380/660 v / 1140/3000/6000/10000. 50/60 hz if customers need special voltage or frequency of special need to inform us in advance.

　　Material

　　Impeller: Cast iron HT200. or tin bronze (various grades) such as: ZCuSn3Zn8Pb6Ni1 or stainless steel materials 304. 316. 316L, 2205 duplex stainless steel, etc

　　Pump housing: Cast iron HT200. or stainless steel such as 304. 316. 316L, duplex stainless steel, etc

　　Pump shaft: Cold-drawn steel with chrome plating, or stainless steel 2Gr13(quenched and tempered at 1050℃ to enhance torque)

　　Motor sealing: Rubber sealing O-ring; Machine sealing.

　　The motor expansion regulating bag is made of rubber.

　　Advantages of landscape drift submersible pump equipment

　　The meticulous assembly in the factory ensures rapid and reliable installation on site

　　It adopts multi-stage impellers, generating extremely low noise

　　The built-in check valve prevents the impact of water hammer.

　　The single-stage head is high, which can reduce the height of the entire unit and increase the stability of operation. The pump shaft diameter is φ28mm, which enhances the torsional resistance of the pump shaft. The bearing bush is made of natural rubber material, which is more wear-resistant, and is equipped with hard bearing bushes or hard alloy bearing bushes made of imported materials.

　　Scope of supply

　　Submersible pump unit (consisting of two parts: the pump body and the submersible motor), with an internal one-way check valve, one matching flange at the water outlet, six 12×60(8.8 grade) bolts, one user and maintenance manual, one certificate of conformity, one packing list, and outer packaging.

　　The above models are just examples for illustration. The online prices do not represent the actual selling prices. For specific prices, please contact us by phone.
